Hydraulic Cylinder seal kit for Case / New Holland equipment
Aftermarket hydraulic cylinder seal kit replacing Case / New Holland part 86518284. The listed equipment models and cylinder configurations are shown below.
Specifications
| Replacement part number | 86518284 |
|---|---|
| Equipment manufacturer | Case / New Holland |
| Part type | Seal Kit |
| Cylinder application | Bucket Latch, Coupler and Lift |
| Listed cylinder bore diameters | 1.5 in, 2.5 in, 2.75 in; varies by fitment |
| Listed cylinder rod diameter | 0.75 in |
Bore and rod measurements describe the listed cylinder application. They are not the outside dimensions of this seal kit.
Listed fitments and configuration notes
| Manufacturer | Model or application | Cylinder type | Rod diameter | Bore diameter | Fitment notes |
|---|---|---|---|---|---|
| Case | SR130 | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SR130 NRC | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SR130 Tier 4B | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SR150 | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SR150 NRC | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SR160 Tier 4B | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SR175 | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SR175 NRC | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SR175 Tier 4B | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SR200 | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SR200 NRC | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SR210 Tier 4B | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SR220 | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SR220 NRC | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SR220 Tier4B | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SR240 Tier 4B | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SR250 | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SR250 NRC, SR250 Tier 4A, SR270 Tier 4B | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SR270 Tier 4B-C | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SV185 | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SV185 NRC | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SV185 Tier 4B | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SV250 | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SV250 NRC | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SV250 Tier 4B | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SV280 Tier 4B | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SV300 | Lift | 0.75 in | 2.75 in | Match the cylinder and replacement part number |
| Case | SV300 NRC, SV300 Tier 4A | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SV300 Tier 4B | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SV340 Tier 4B | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | SV340 Tier 4B-C | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | TR270 | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | TR270 NRC | Lift | 0.75 in | 2.5 in | Match the cylinder and replacement part number |
| Case | TR270 Tier 4B | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | TR310 Tier 4B | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | TR320 | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | TR320 Tier 4A, TR320 NRC, TR340 Tier 4B | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | TR340 Tier 4B-C | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | TV370 Tier 4B | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | TV380 | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | TV380 Tier 4A | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | TV380 Tier 4B | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | TV380 Tier 4B-C | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| Case | TV380 NRC | Coupler | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | C227 | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | C227 NRC, C227 Tier 4B | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | C232 | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | C232 NRC, C232 Tier 4A, C232 Tier 4B | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | C234 Tier 4 B-C | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | C237 Tier 4B | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | C238, C238 NRC, C238 Tier 4A | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | C238 Tier 4B | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | C238 Tier 4B-C | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | C245 Tier 4B | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | L213 | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | L213 NRC, L213 Tier 4B | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | L215 | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | L215 NRC | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | L216 Tier B | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | L218 | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | L218 NRC | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | L218 Tier 4B | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | L220 | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | L220 NRC | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | L220 Tier 4B | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | L221 | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | L223 | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | L223 NRC, L223 Tier 4B | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | L225 | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | L225 NRC, L225 Tier 4A | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | L228 Tier 4B | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | L230, L230 NRC, L230 Tier 4A | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | L230 Tier 4B | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
| New Holland | L234 Tier 4B, L234 Tier 4B-C | Bucket latch | 0.75 in | 1.5 in | Match the cylinder and replacement part number |
Confirm fit before ordering
Check the replacement part number against your existing part or equipment parts information. Match the cylinder application and any serial-number, date, left/right or configuration notes in the table. Model name alone may not identify the correct replacement.
Identify the cylinder being resealed before choosing a kit. Seal kit contents can vary by cylinder design; confirm the kit part number and the applicable bore and rod sizes.
Need help matching your part? Contact Johnson Hydraulic Sales with your equipment model, serial number, part number and photos.

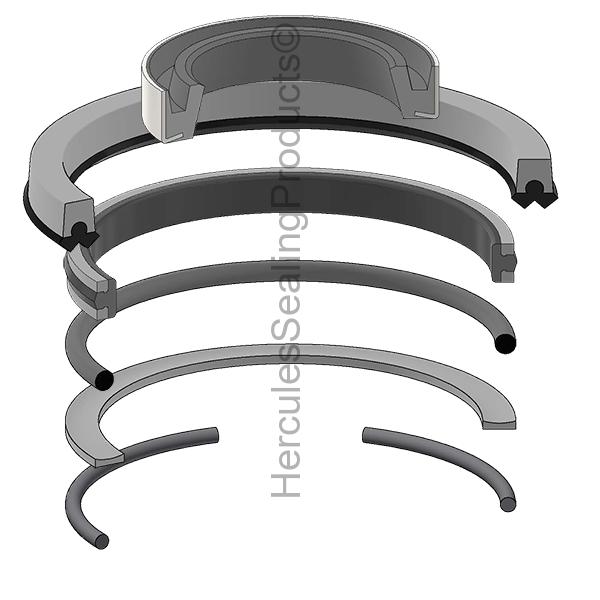

Aftermarket replacement for Case / New Holland equipment; not an equipment-manufacturer-branded OEM part. Representative image; actual appearance and kit contents may vary.
