Lift Cylinder seal kit for Case / New Holland equipment
Aftermarket lift cylinder seal kit replacing Case / New Holland part 84480921. The listed equipment models and cylinder configurations are shown below.
Specifications
| Replacement part number | 84480921 |
|---|---|
| Equipment manufacturer | Case / New Holland |
| Part type | Seal Kit |
| Cylinder application | Lift |
| Listed cylinder bore diameter | 2.5 in |
| Listed cylinder rod diameter | 1.75 in |
Bore and rod measurements describe the listed cylinder application. They are not the outside dimensions of this seal kit.
Listed fitments and configuration notes
| Manufacturer | Model or application | Cylinder type | Rod diameter | Bore diameter | Fitment notes |
|---|---|---|---|---|---|
| Case | SV185 | Lift | 1.75 in | 2.5 in | Match the cylinder and replacement part number |
| Case | SV185 NRC | Lift | 1.75 in | 2.5 in | Match the cylinder and replacement part number |
| Case | SV185 Tier 4B | Lift | 1.75 in | 2.5 in | Match the cylinder and replacement part number |
| Case | SV250 | Lift | 1.75 in | 2.5 in | Match the cylinder and replacement part number |
| Case | SV250 NRC | Lift | 1.75 in | 2.5 in | Match the cylinder and replacement part number |
| Case | SV250 Tier 4B | Lift | 1.75 in | 2.5 in | Match the cylinder and replacement part number |
| Case | SV300 | Lift | 1.75 in | 2.5 in | Match the cylinder and replacement part number |
| Case | TV380 | Lift | 1.75 in | 2.5 in | Match the cylinder and replacement part number |
| New Holland | C232 | Lift | 1.75 in | 2.5 in | Match the cylinder and replacement part number |
| New Holland | C232 NRC, C232 Tier 4A, C232 Tier 4B | Lift | 1.75 in | 2.5 in | Match the cylinder and replacement part number |
| New Holland | L220 | Lift | 1.75 in | 2.5 in | Match the cylinder and replacement part number |
| New Holland | L220 NRC | Lift | 1.75 in | 2.5 in | Match the cylinder and replacement part number |
| New Holland | L220 Tier 4B | Lift | 1.75 in | 2.5 in | Match the cylinder and replacement part number |
| New Holland | L223 | Lift | 1.75 in | 2.5 in | Match the cylinder and replacement part number |
| New Holland | L223 NRC, L223 Tier 4B | Lift | 1.75 in | 2.5 in | Match the cylinder and replacement part number |
| New Holland | L225 | Lift | 1.75 in | 2.5 in | Match the cylinder and replacement part number |
| New Holland | L225 NRC, L225 Tier 4A | Lift | 1.75 in | 2.5 in | Match the cylinder and replacement part number |
Confirm fit before ordering
Check the replacement part number against your existing part or equipment parts information. Match the cylinder application and any serial-number, date, left/right or configuration notes in the table. Model name alone may not identify the correct replacement.
Identify the cylinder being resealed before choosing a kit. Seal kit contents can vary by cylinder design; confirm the kit part number and the applicable bore and rod sizes.
Need help matching your part? Contact Johnson Hydraulic Sales with your equipment model, serial number, part number and photos.

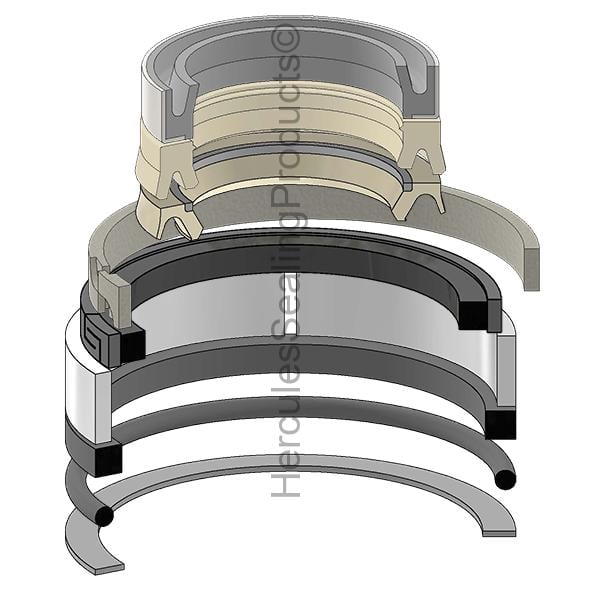

Aftermarket replacement for Case / New Holland equipment; not an equipment-manufacturer-branded OEM part. Representative image; actual appearance and kit contents may vary.
